Option Code
|
Feature
|
|---|---|
|
(Analog) Provides temperature stabilized electronics for low drift and high accuracy.
|
|
|
Provides low speed analog output for muDMS sensors with USB output.
|
|
|
Additional output, DC coupled with 10x gain and adjustable DC offset.
|
|
|
Additional output, AC coupled with 10x gain.
|
|
|
Additional Output, Binary TTL Output, 0/5 volts.
|
|
|
High frequency amplifier for D models up to 200 KHz bandwidth.
|
|
|
High frequency amplifier for D models above 200 KHz to 1 MHZ bandwidth.
|
|
|
Provides RC models with a high bandwidth amplifier,DC – 200 KHz.Bandwidths up to 350 KHz can be specified.
|
|
|
Additional output for D models with bandwidths up to 200 KHz.
|
|
|
Additional output for D models with bandwidths exceeding 200 KHz up to 1 MHz.
|
|
|
Additional high frequency output.
|
|
|
Low frequency amplifier (< 20 KHz), 100 Hz STD.
|
|
|
Additional output with low frequency bandwidth (< 20 KHz), 100 Hz STD.
|
|
|
Digital display – DC volts.
|
|
|
N
|
Low Noise Amplifier – The amplifier is optimized to operate with highly reflective targets only. This cuts noise floor in half, thereby doubling resolution (For RC sensors only)
|
|
O
|
Provides an adjustable 0 to -4 VDC offset control. This feature is used to eliminate the DC offset from the sensor output, thereby increasing readout resolution.
|
|
Polynomial curve fit to specified calculation range.
|
|
|
Connectorized AC/DC power adaptors and BNC outputs for 1, 2 or 4 sensors.
|
|
|
AMBIENT LIGHT REJECTION – STANDARD UNITS ARE SENSITIVE TO BROADBAND LIGHT FROM 400 – 1100 nm. WITH OPTION R1, INCOMING LIGHT IS BLOCKED FROM <800 to >900 nm.
|
|
|

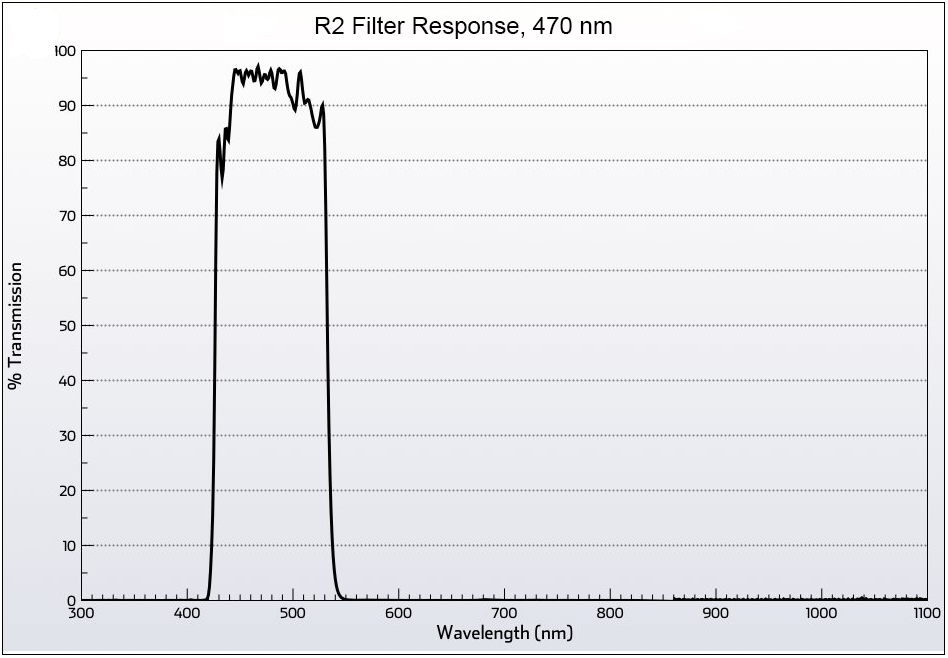

BLUE LIGHT FILTER, 470 nm ±50 nm.
|
|
|
V
|
Provides sensor amplifier with 0 – 10 volt output.
|
|
Additional Output with Linear Range Spanning 0 – 5 volts
|
